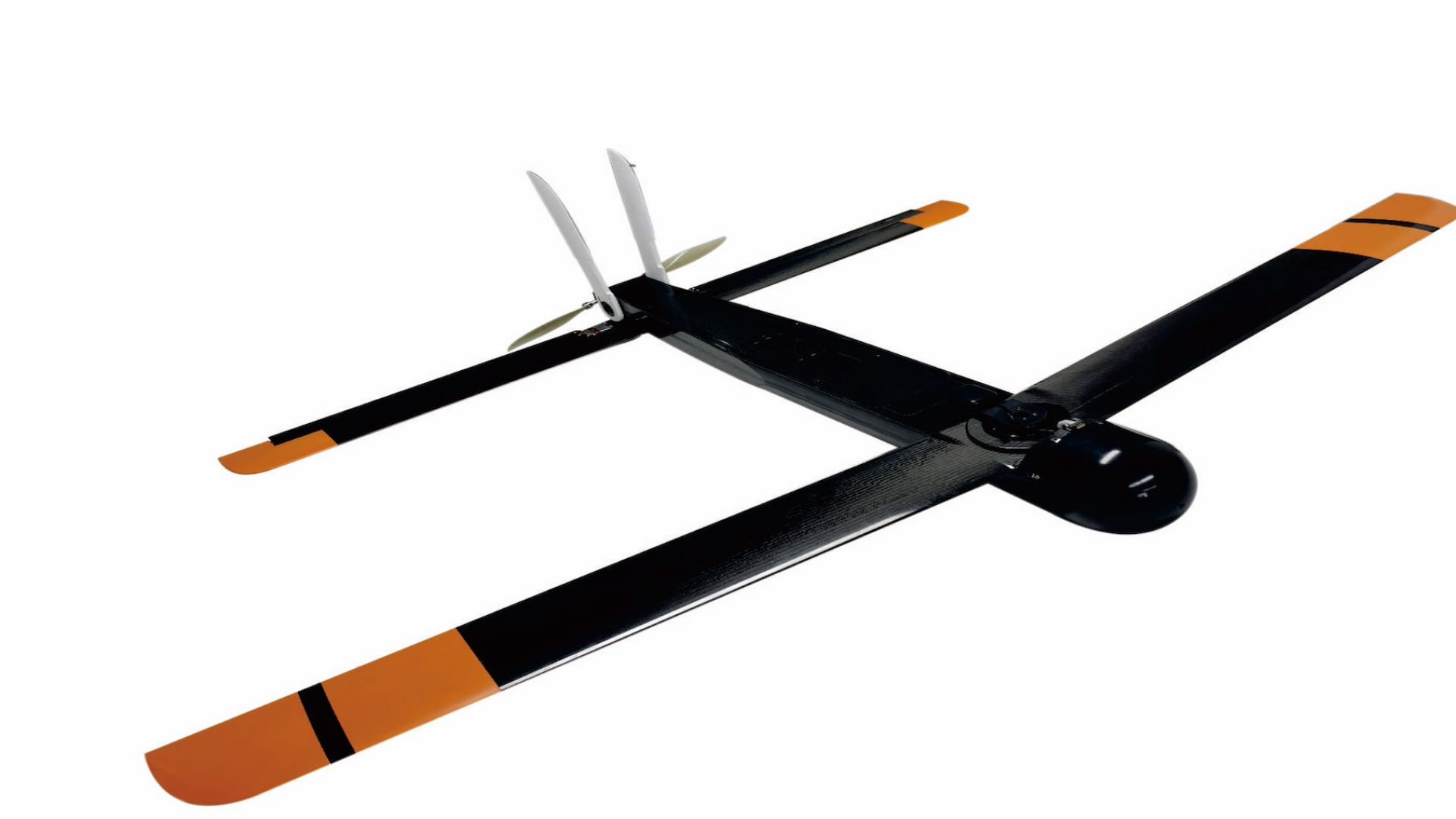

The TY-3 UAV is an information acquisition platform and precision strike weapon organically combined with information technology weaponry, capable of rapid deployment for immediate detection and timely strike against targets beyond visual range, while having good acoustic stealth characteristics that make it difficult to be detected, identified or tracked at a very close range. It can provide real-time images and GPS coordinates location for the manipulator for information gathering, identification/location or target killing.



  • Dual-light photoelectric guidance technology
  • Integrated intelligence/surveillance/reconnaissance (ISR) capabilities
  • Provide warfighters with real-time images
  •  Low visual and sound signals
  • The whole system is carried by a single soldier
  • Modular design, expandable to vehicle-mounted cluster launch or airdrop launch
  • Flight vehicle platforms
  • Flight control navigation
  • Measurement and control links
  • Guidance heads
  • Ground stations
  • Launch cartridges
  • Endurance: ≥40min
  • Cruising speed: 30m/s~40m/s
  • Typical working altitude: 50m~300m
  • Maximum takeoff weight: 10kg
  • Load capacity: ≥2.5kg
  • Diameter after folding: ≤140mm
  • Fuselage length: ≤1069mm
  • Power: Electric drive
  • Navigation and positioning mode: BD/GPS
  • Reconnaissance guidance head: Visible/infrared
  • Take-off mode.:Barrel launch (10 barrel cluster launch)
  • Control radius: 20km
  • Communication frequency band: L-band
  • Strike accuracy: 1.5m (CEP)
